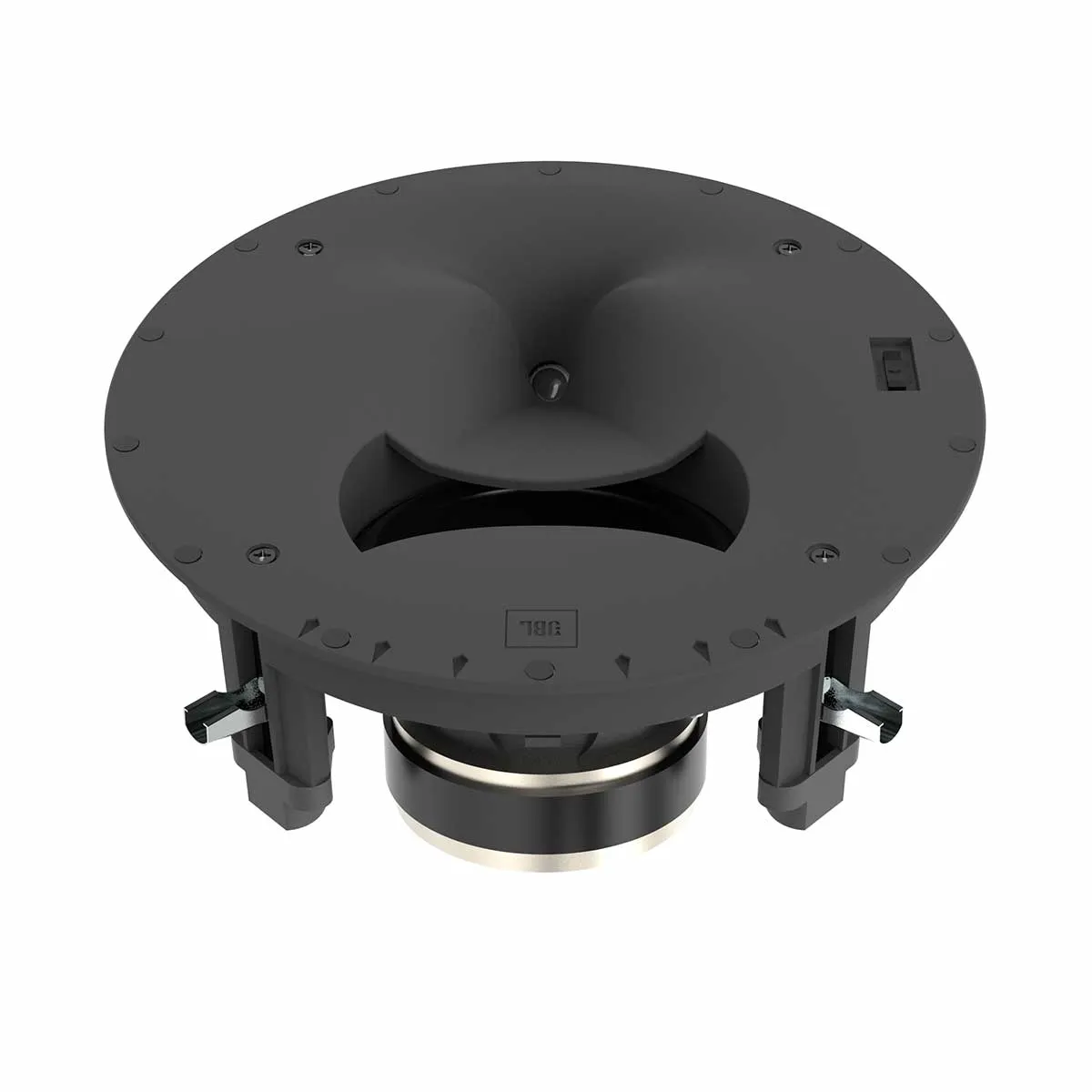

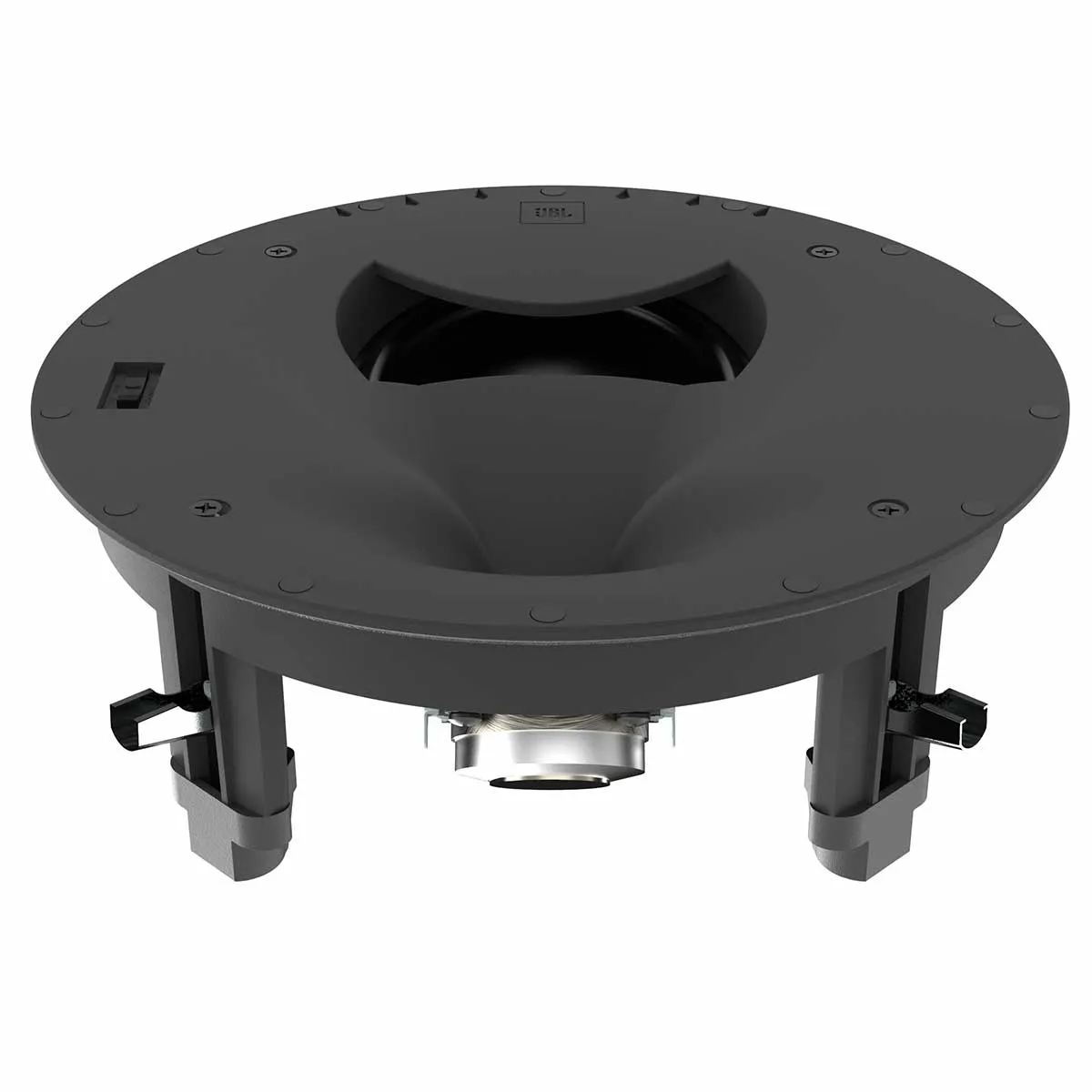

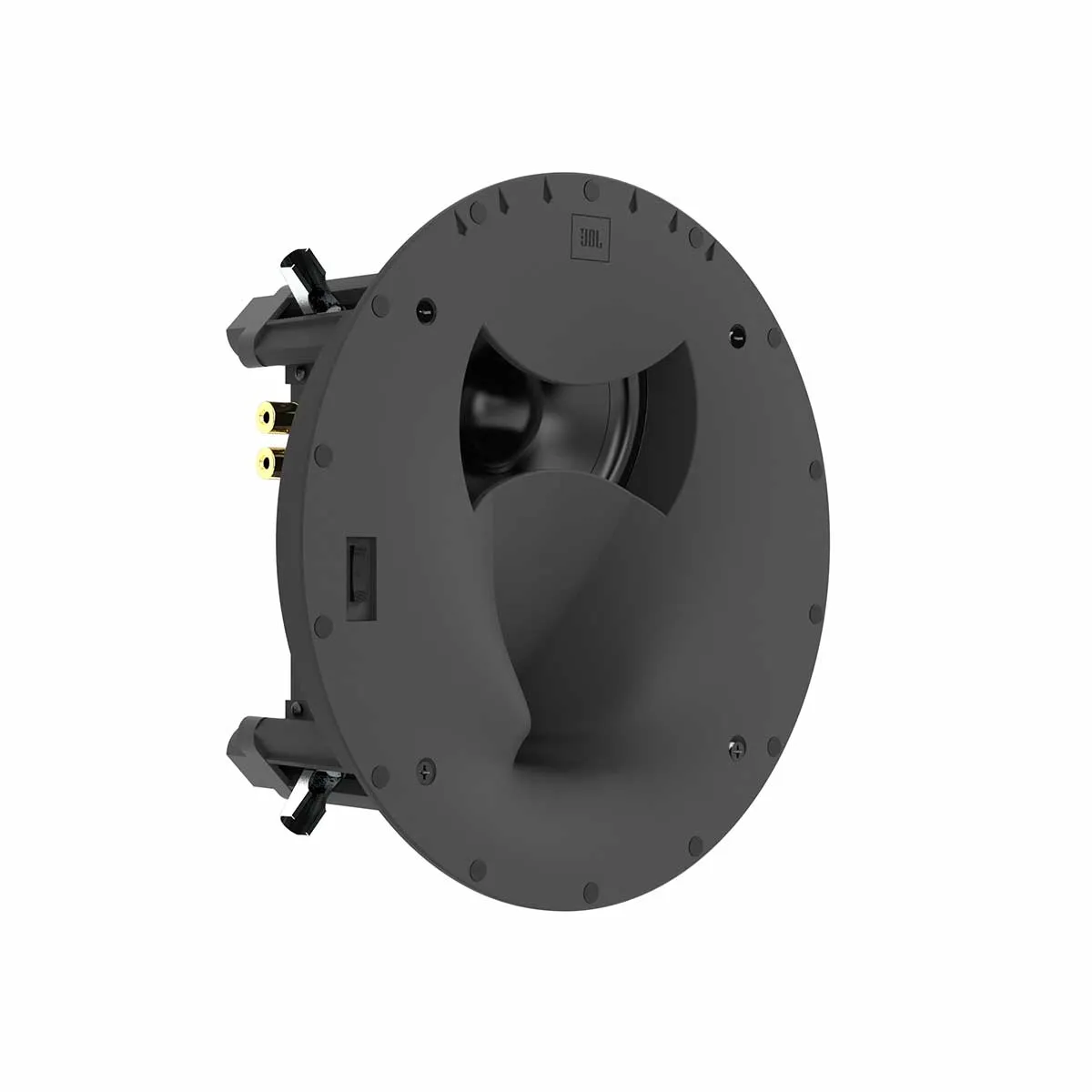

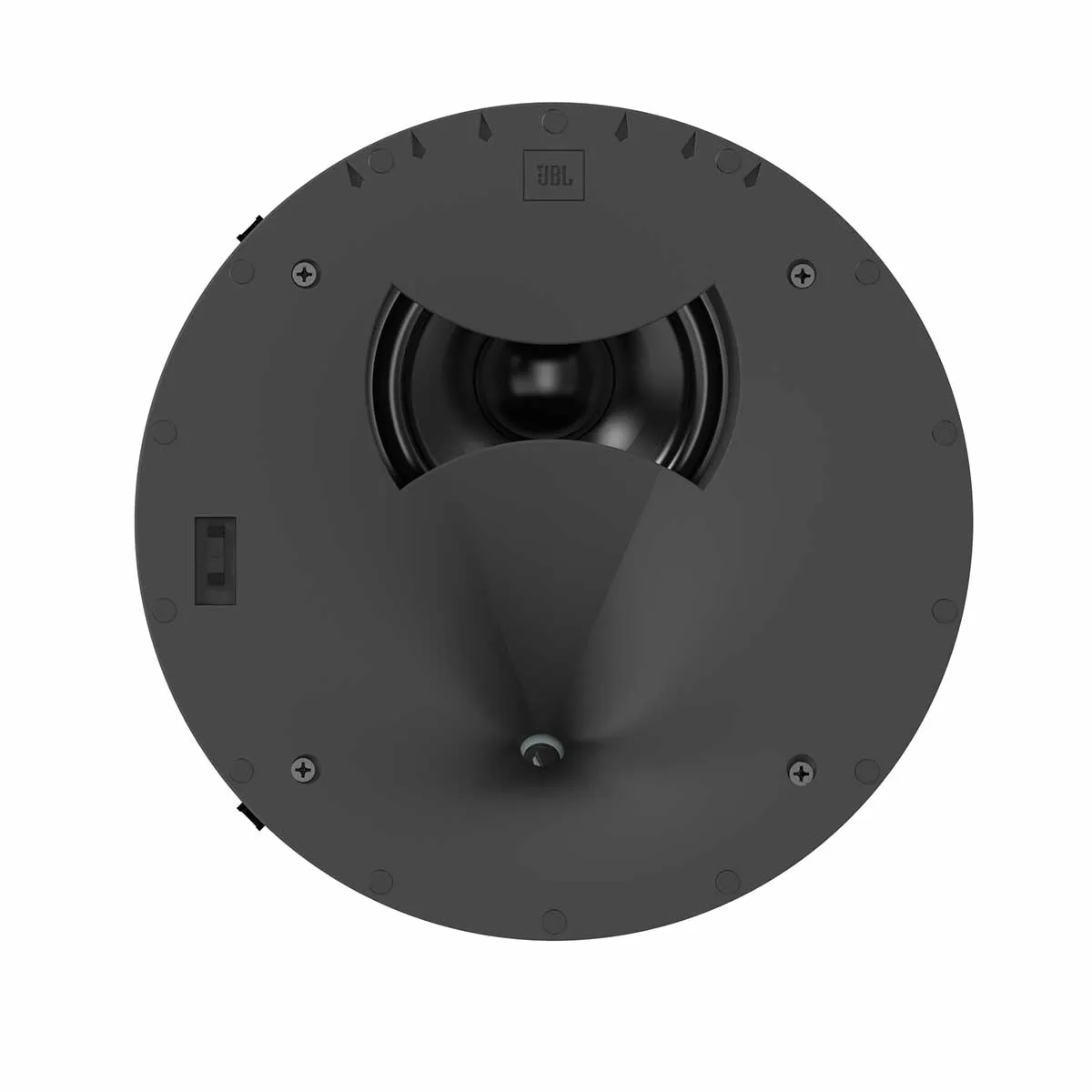

The SCL-8 is the most compact round in-ceiling model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in small to medium-size rooms. The SCL-8 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with an angled 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofer operating behind an acoustic aperture waveguide. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 60 degrees from the listening position. Premium components are used throughout the crossover network including a boundary gain adjustment switch while high-quality gold-plated push-type speaker terminals ensure a secure connection. Installation is simple and quick with the new Cat Claw mounting mechanism that allows the speaker to be securely clicked into place freeing up two hands for tightening it down flush to the surface of the ceiling. Round and square zero-bezel magnetically attached grilles are included and can be painted to match any décor. The SCL-8 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution.

SCL-8 Highlights

• 2-way in-ceiling loudspeaker system designed for off-axis listening as height, in-ceiling LCR and surround channels
• 1-inch 2410H-2 compression driver tweeter mated to a JBL patented offset High-Definition Imaging (HDI™) horn assembly
• 5.25-inch (130mm) Advanced Aluminum Matrix cone, cast frame woofer with acoustic aperture waveguide baffle
• Patented Cat Claw installation mechanism

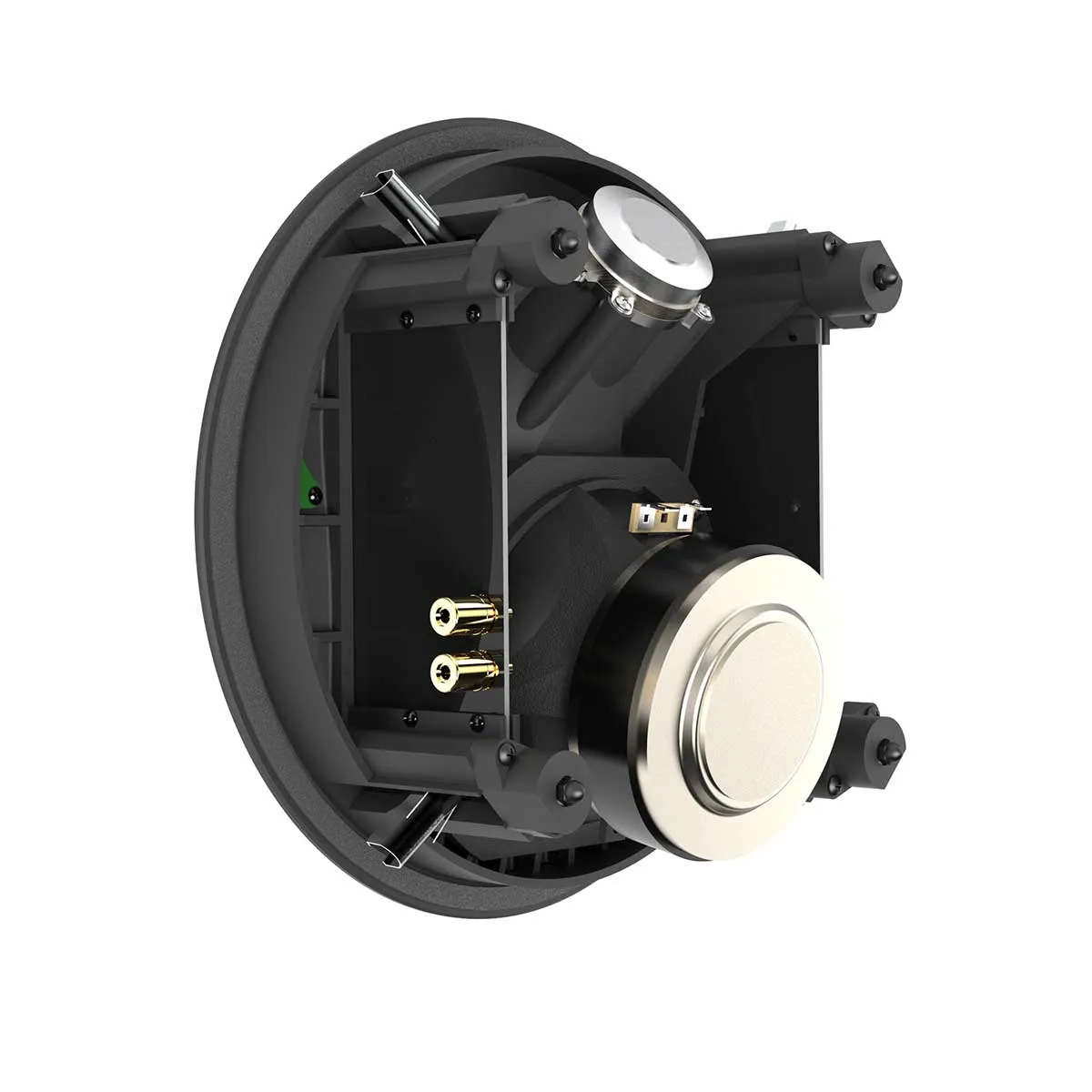

• Gold plated, spring-loaded binding posts

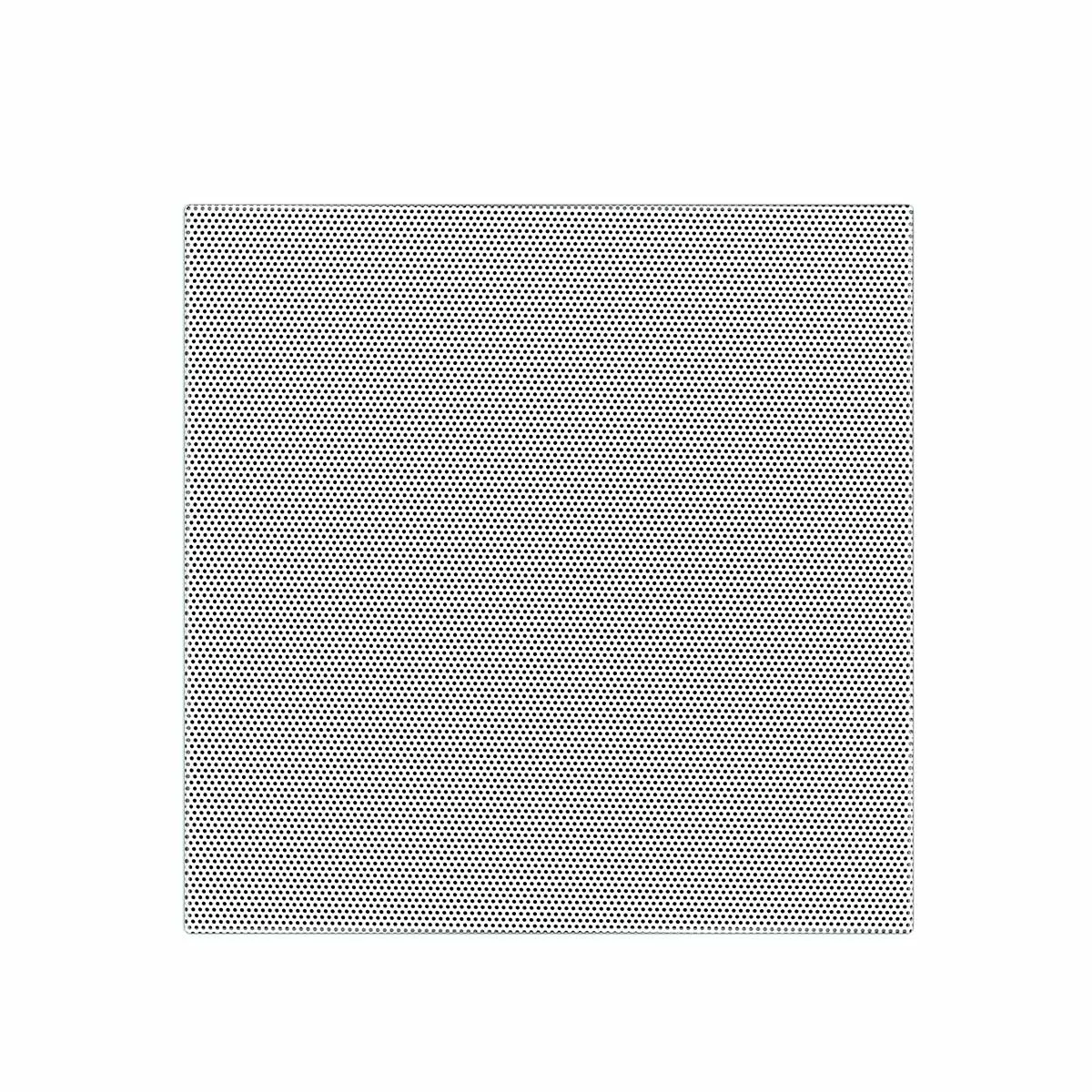

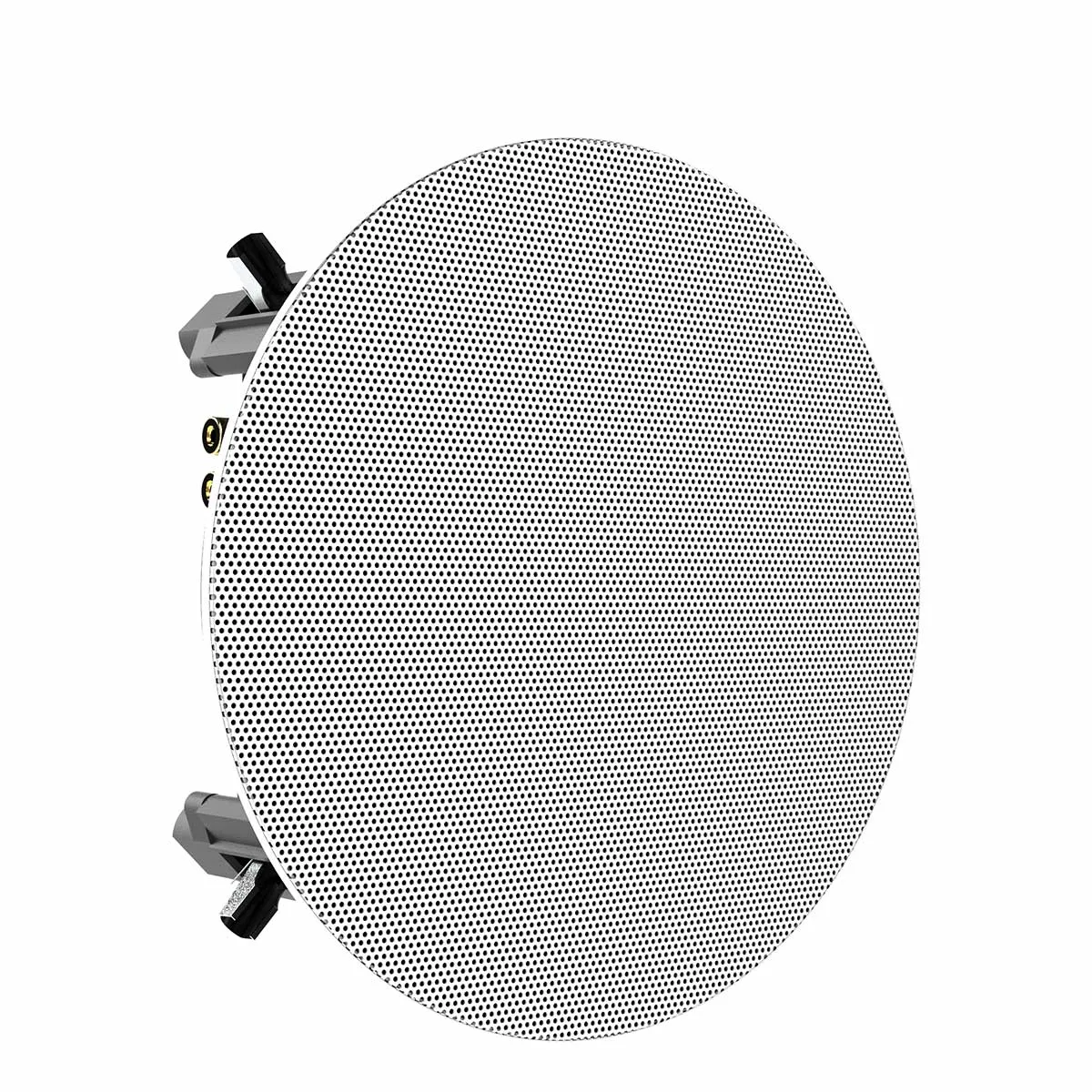

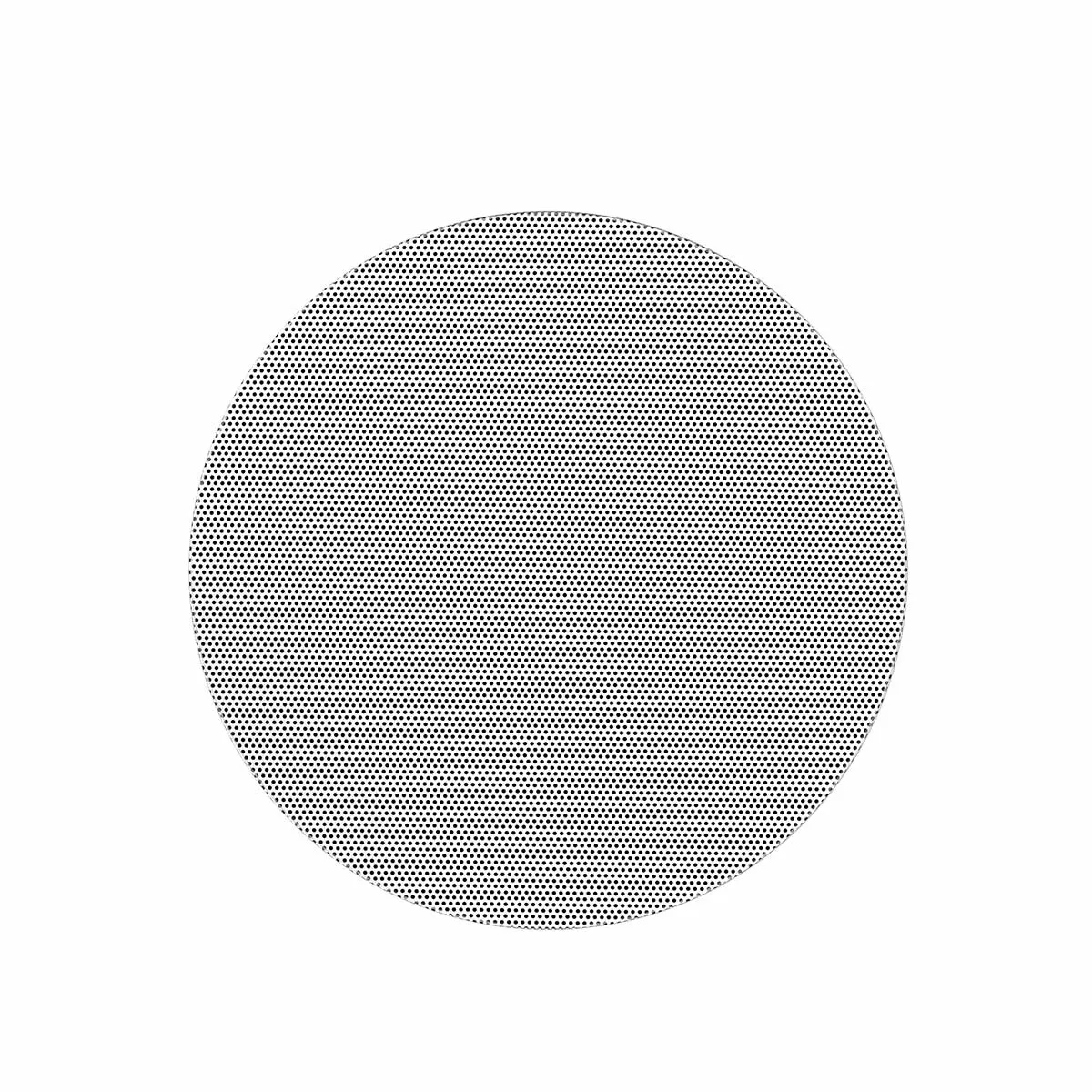

• Includes paintable round and square zero-bezel, magnetically attached grilles
